Non-Contact Optical Registration System

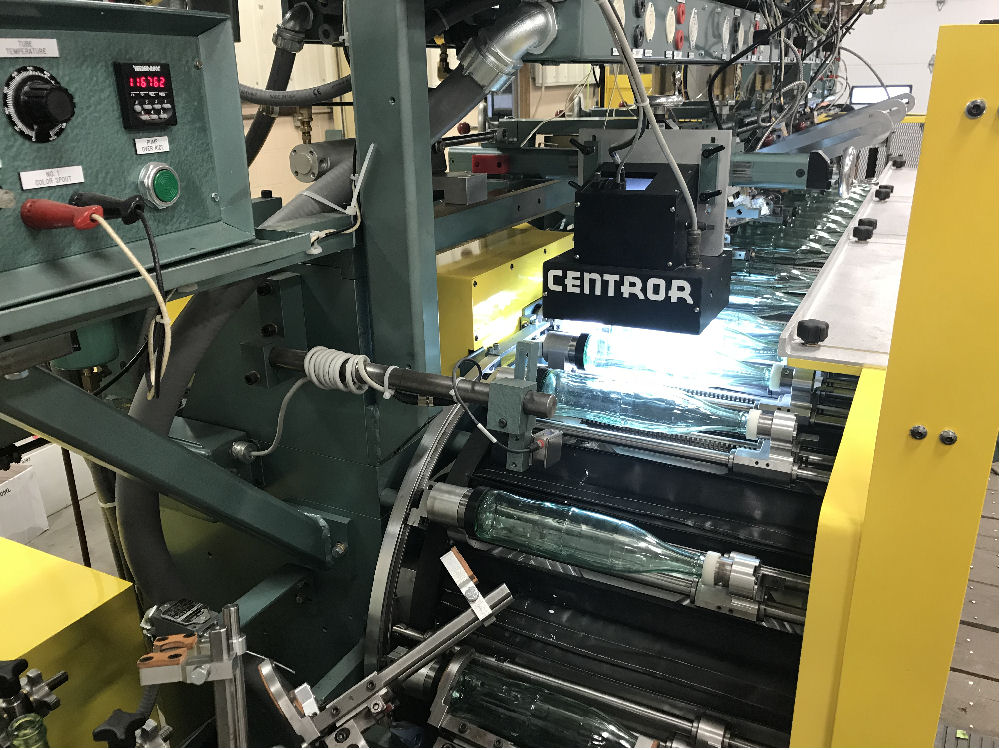

Our Non-Contact Optical Registration System is compatible with our CLS-175 and CLS-200 decorators. The camera and servo system work together to reliably detect existing lugs or marks on bottles up to 200 bottles per minute. The operator interface allows easy control of seam angular position or print placement on bottles.



CENTROR Technical Information

Products Glass Beverage Bottles
Diameter 44-96 mm (1.750"-3.750")
Camera Linear Gray level
Production Speed 200 b.p.m. (max)
Field of View 100 mm (3.937")
Seam Correction Angular
Range of Correction 360 degrees +/- 5 mm (.197")
Angular Resolution Better than 0.1 degrees
Angular Accuracy +/- 0.03 degrees
